Lugsicher M500U UV Laser Marking Machine
Lugsicher M500U is the UV laser option in the Lugsicher M500 value series, intended for routine production lines and budget-conscious equipment selection. Assess plastics, films and packaging using actual samples; confirm mark readability, material condition and line timing before choosing the configuration.
Images are existing series reference material and may show historical model or brand markings. Refer to current supply documentation for configuration, appearance and branding.
Multiple sealing design
Aviation grade sealing, effectively extending the laser tubeService life, precision manufacturing process, effectively ensuringStable laser beam output
Intelligent interactive system
Automatically activate the path simulation system before printing, advance planningMake it. Mark the path, improve printing efficiency, and determineAfter printing the content and parameters, automatically calculate the highest printing valuePrinting speed, precise matching of production line capacity
integrated design
Adopting a compact controller free design, suitable for narrow spacesBetween. Built in industrial protocol and infrared pre sighting system,Significantly shorten the calibration and installation cycle. Multi segment adjustableStrong compatibility between working distance and modular interface
Sample effect
Glass marking
glass
Laundry detergent bottle label
plastic
Beverage bottle cap
plastic
Glass medicine bottle labeling
glass
Circuit board marking

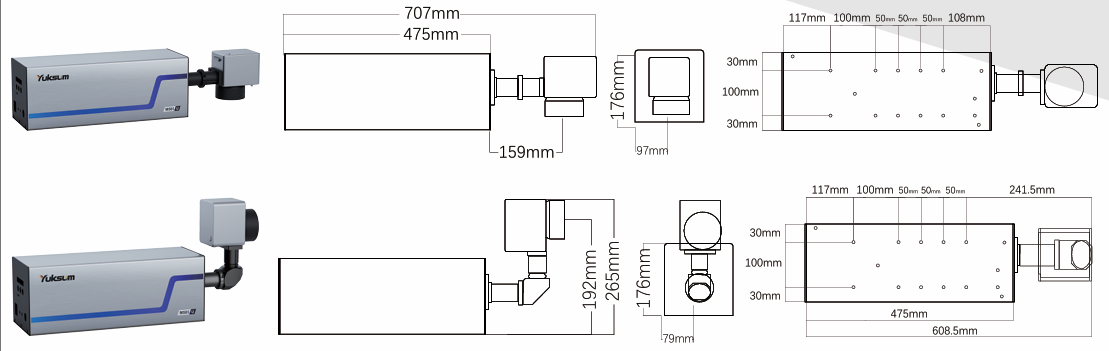

electronic componentProduct dimensions
Specifications
| interface | -Control System: Lugsicher Operating System - Display Screen Size: 10.1 inches |
|---|---|

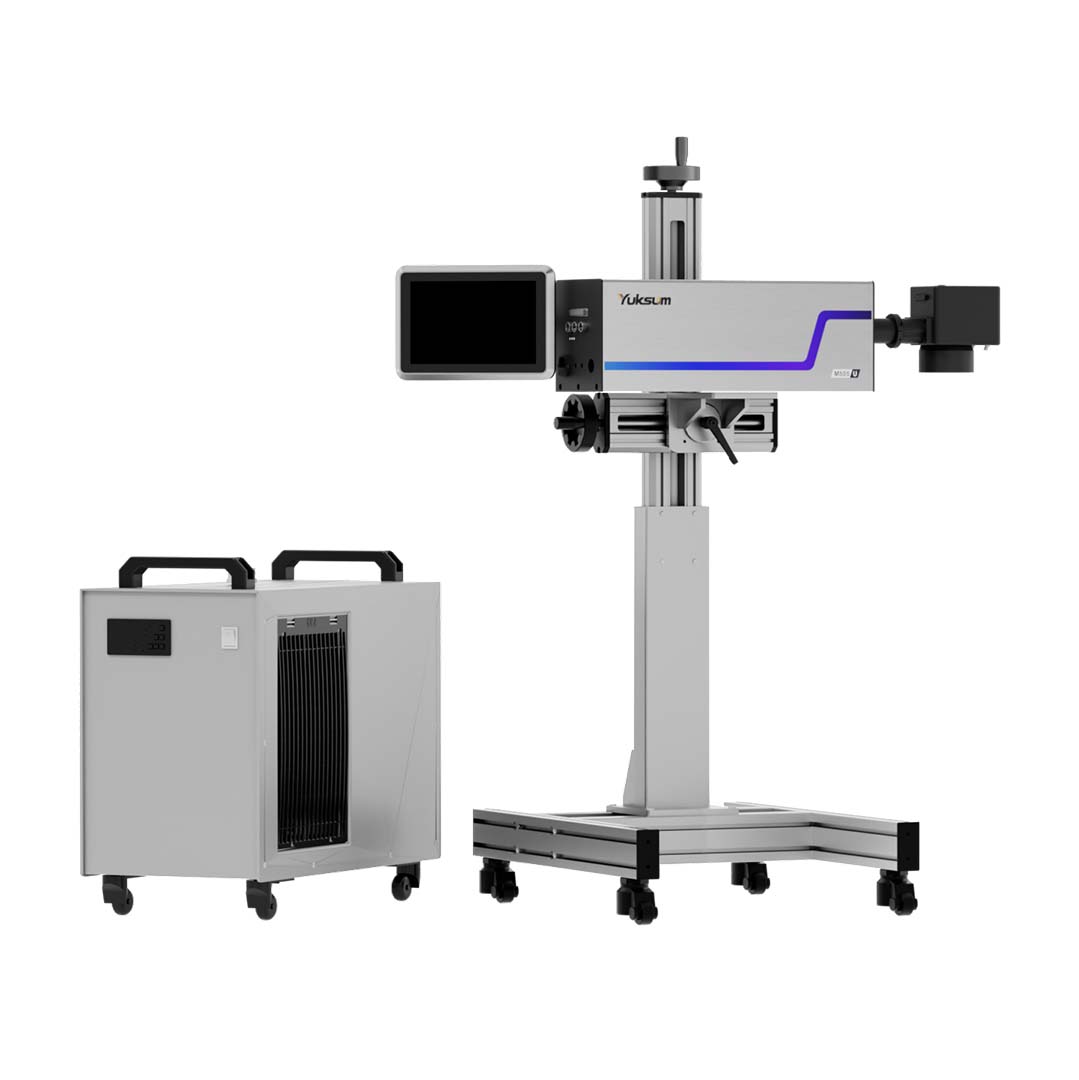

| Standard and optional | -Standard configuration: Host, 2D aluminum alloy laser machine adjustment bracket10.1-inch external touch screen, fiber optic eye, universal adjustable eyeBracket - Optional: Big Head Electric Eye, 2000p Synchronizer, Synchronizer BracketSynchronizer coupling, smoking machine (single head)Optional lenses (please refer to the table below for details on "Identification area and focal length") |
| Identification area and focal length (in millimeters) | -UV Field Mirror/F80-50 * 50- UV Field Mirror/F100-70 * 70- UV Field Mirror/F160-110 * 110 (Standard) - UV Field Mirror/F210-15 * 150- UV Field Mirror/F290-200 * 200-UV Field Mirror/F380-250 * 250- UV Field Mirror/F420-300 * 300-UV Field Mirror/F470-350 * 350- UV Field Mirror/F525-400 * 400- UV Field Mirror/F750-500 * 500- UV Field Mirror/F840-600 * 600- UV Field Mirror/F1090-800 * 800 |
| Application/Substrate | Flexible PCB board, plastic materials (such as PE, PVC, PP, PS, etc.)POM、PC、 Acrylic, nylon, etc.), metal materials (such as stainless steel)Steel, aluminum, gold, platinum, silver, titanium, brass, etc., wooden materialsSuch as medium density fiberboard, plywood, and fiberboard, glass* |
| Model selection | - M505U (5W) - M510U (10W) |
| laser type | -Laser tube: solid-state ultraviolet laser - wavelength: 355 nanometers - cooling system: water cooling (water cooling machine is included as standard) |
| physical properties | -Environmental temperature: 5-40 ° C (41-104 ° F)-Environmental humidity: 10% -90%, no condensation - Electrical requirements: 240 VAC,~50/60 Hz, 1 PH, 0.80 kW - Machine size: Please refer to the dimension diagram for details - Machine net weight: 17kg |
| Speed (static coding or flight coding) | -Mirror marking speed: up to 13500 millimeters per second * - Production line speed: up to 6900 millimeters per second (22.5 feet per second)* |
| Marking characteristics | Printing lines: limited only by character height and printable area - industry standard font (Windows) ® TrueType ®) Single line font, machine-readable encoding (OCR, 2D matrix, etc.) - Barcodes: Code128A, Code128B, Code128C, Code39, Code93- QR codes: QR Code, Data Matrix, Aztec Code, Han Xin Code - Graphics, logos, signs, etc. - Straight lines, circles, arcs, reversals, rotating serial numbers and batch numbers - Automatic date, layer, and time coding; Real Time Clock |
| Communication and I/O interface | -UDP, TCP/IP, and RS232 encoders and product detection trigger inputs -3 inputs/2 outputs for start/stop signals, - machine/operation interlock devices, alarm outputs |
*Depending on the size/complexity of the material and coding information. Product and application related matters,Please consult with a representative from LUGSICHER.
Download Materials
Lugsicher M500U Laser Machine Product Manual
